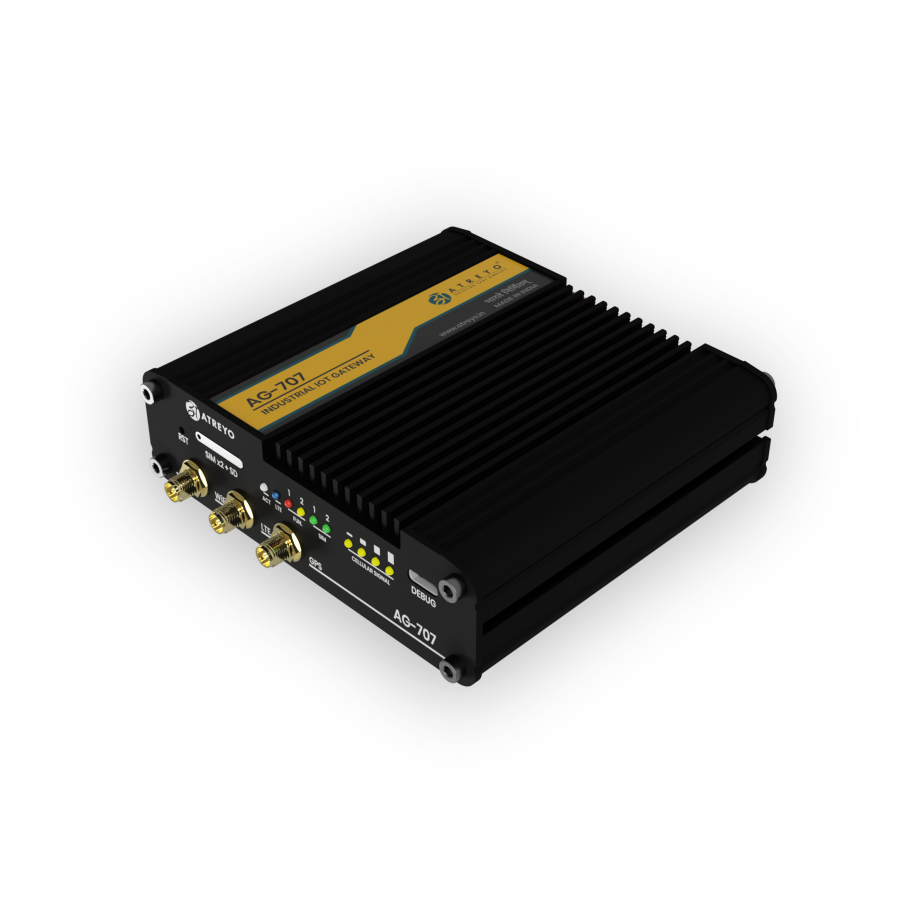

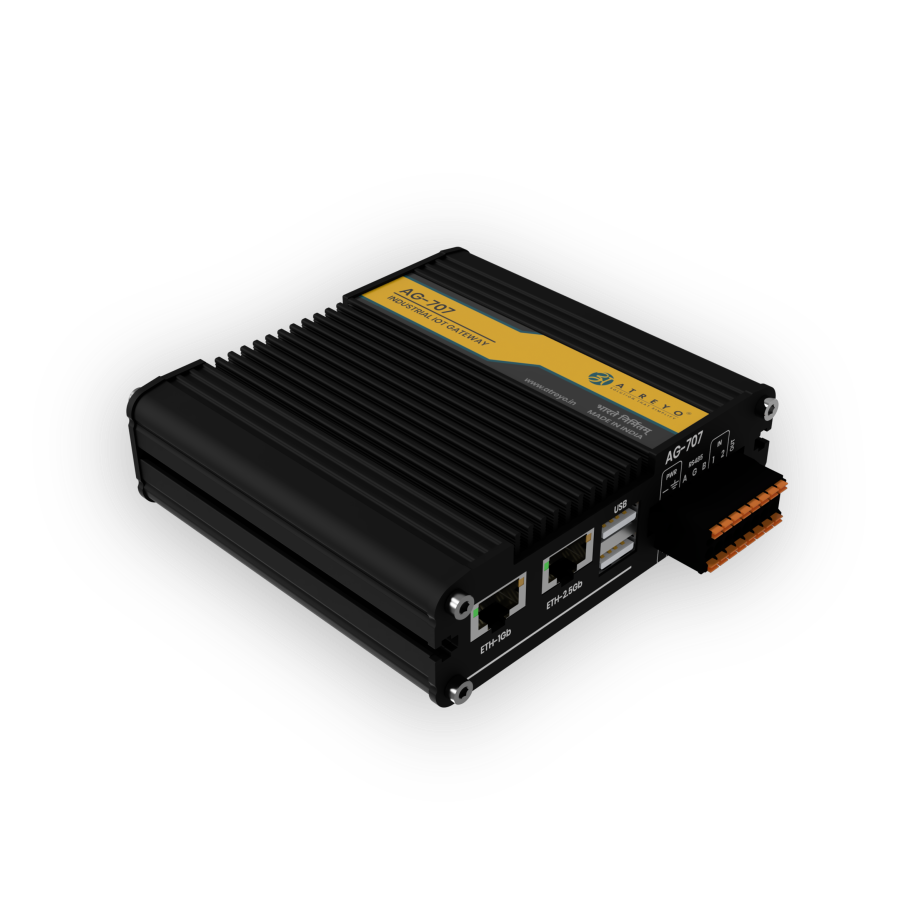

AG-707
Edvanced ARM Cellular IoT Gateway
- ARM A53 processor and OpenWRT OS
- Dual Ethernet, 4G LTE, GPS and dual isolated RS485
- Up to 128GB space
- More than 6000 ready applications
AG-707 is an innovative 4G LTE/5G cellular gateway with 2 Ethernet ports, two RS485, digital I/Os working on OpenWRT or Debian system. It has also optional WiFi module. It can connect in multiple ways to the Internet with dual SIM capability and a range of advanced functions for mission critical IoT or M2M applications. AG-707 also support MQTT protocol for cloud application and Modbus TCP/IP or RTU for industrial applications. The gateway supports systems such as Docker, openPLC and Node-RED.
The gateway's debug port enables advanced users to easily develop their own applications.
| CPU | ARM Cortex A53 dual core processor 1.3Ghz |
| Storage | 16MB (boot flash) and 8-64GB eMMC |
| Memory | 512MB / 1GB RAM |
| Cellular | 4G LTE, GPRS (in GL model 3G also) |
| SIM | 2 x nanoSIM, tray to prevent cards falling out |

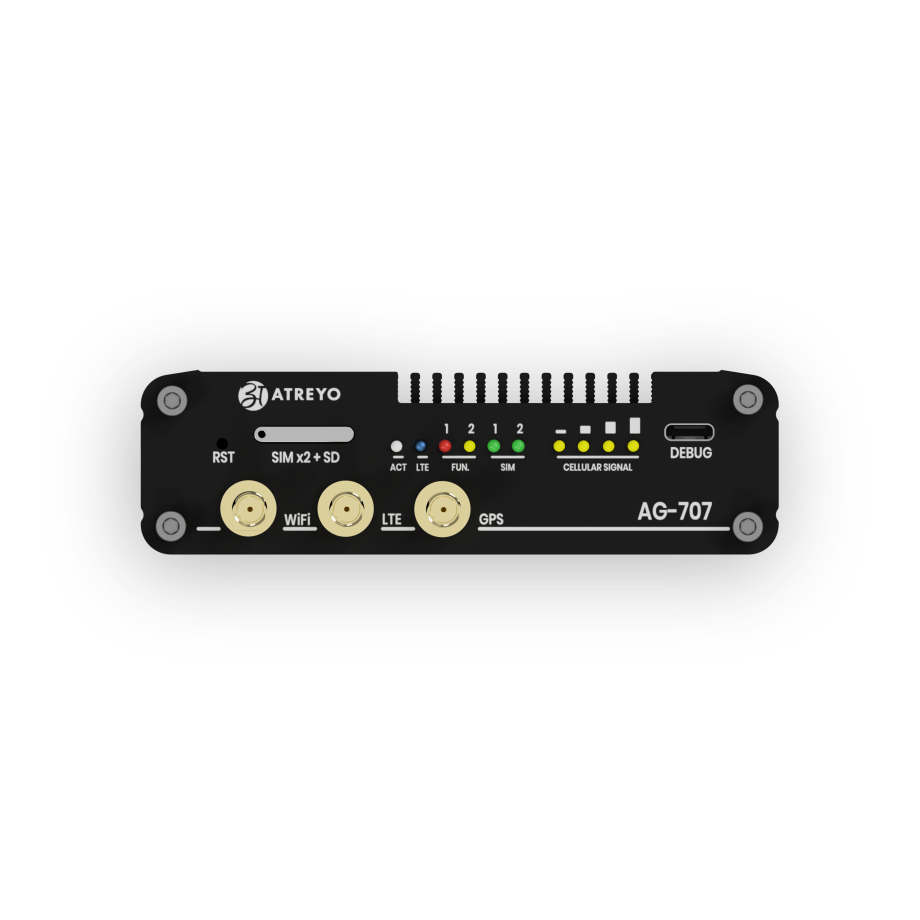

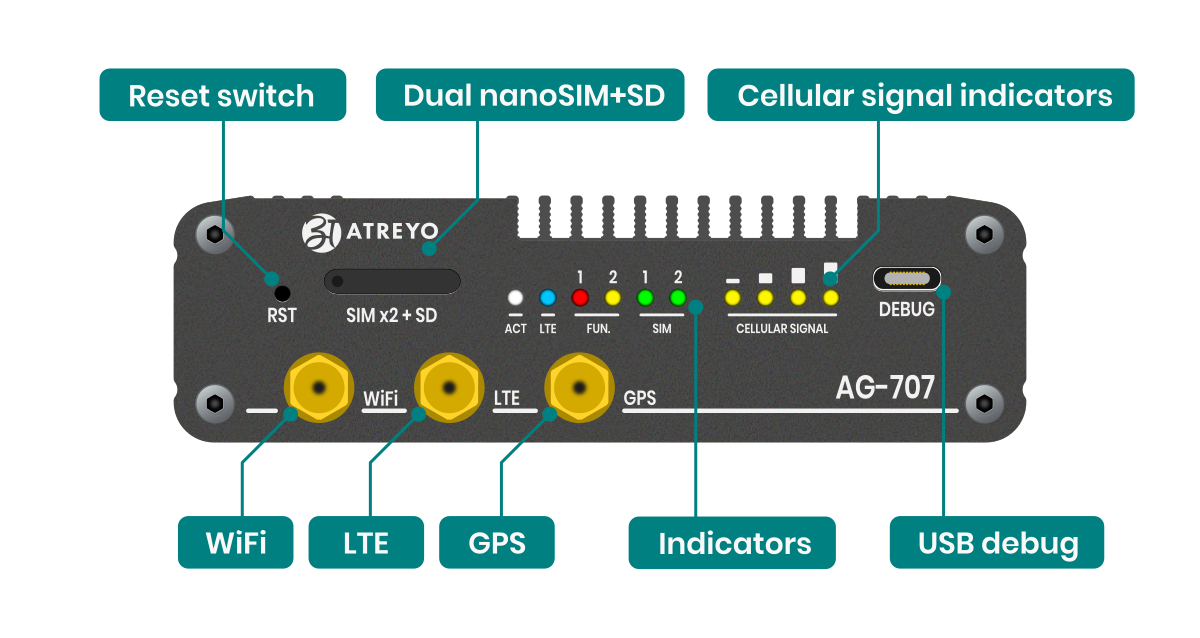

| Antenna connectors | 1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi (WiFi optional) |

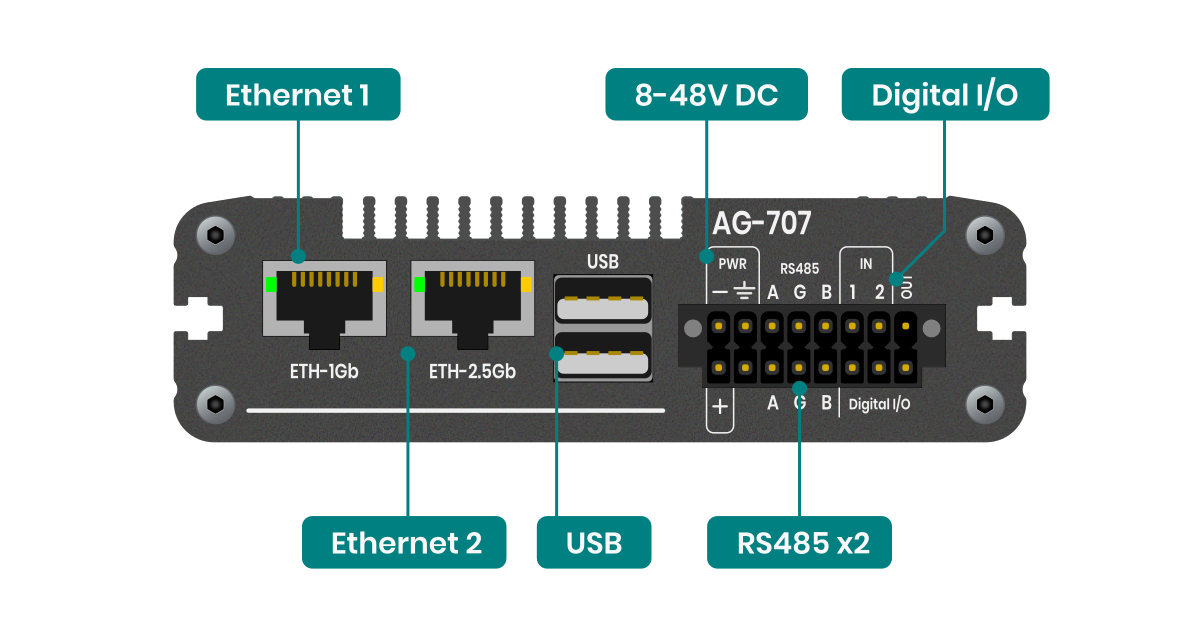

| Ethernet | 1 x 10/100/1000, 1x100/1000/2500 |
| GNSS | GPS, BDS, Galileo, GLONASS, QZSS |
| WiFi | IEEE 802.11b/g/n with hotspot function (optional) |
| Serial | 2 x opto-isolated RS485 |
| Input/output | 2 x opto-isolated digital Input, 1 x relay output |
| Other | 2 x USB 2.0 with USB storage support |
| Status indicators | 4 x signal strength, 1 x connectivity, 1 x activity, 1 x output, 2 x input |
| Power supply | 8-48V DC with reverse polarity protection |
| Operating temperature | -20°C to 75°C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions | 114 x 104 x 32mm |
| Weight | TBD |
| Operating system | OpenWRT 23.05, Kernel 5.15.71, Atreyo Environment V1.01.02 |
| Programming language | Lazarus, C, C++, java, php, html, python, sql etc. |
| Network protocol suppport | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN and tunneling | OpenVPN, OpenConnect, IPsec, PPTP, SoftEther VPN, WireGuard |
| Configuration and management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT(S), MODBUS, RMS |
| Cloud solutions | All supported by Linux for MIPS architecture |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway |
| Serial | Console, Over IP, Modem, NTRIP |
You can order our products online or send an individual inquiry. Please specify a specific model in your inquiry. Some models/products are only available on special order.
| Model Selection | Cellular Network | GNSS | OS | ||||
|---|---|---|---|---|---|---|---|
| GPRS | 3G | LTE | OpenWRT | ||||
| AG-702-V48 | √ | Enquire | |||||
| AG-702-LT-IN-V48 | √ | √ | √ | √ | Enquire | ||
| AG-702-LT-EU-V48 | √ | √ | √ | √ | Enquire | ||
| AG-702-LT-GL-V48 | √ | √ | √ | √ | √ | Enquire | |
