AG-207

Programmable OpenWRT
LTE IoT gateway
with RS485 and I/O

OpenWRT system with custom script support
Ethernet, WiFi, LTE, GPS and RS485
More than 6500 ready applications

Industrial IoT Gateway AG-207 powered by the OpenWRT system. With OpenWRT, you gain access to an expansive repository of over 6500 ready-to-use applications, along with the freedom to integrate your own custom solutions. This cutting-edge gateway, AG-207 features RS485 and two digital inputs. Boasting enhanced built-in memory and RAM, the Gateway unlocks limitless programming potential, empowering your projects like never before.

Specification
Functions
Downloads
Ordering

CPU	580MHz MIPS processor
Storage	32MB+512MB ExtRoot support (overlay)
Memory	256MB RAM
Cellular	LTE, GPRS
SIM	1 x microSIM

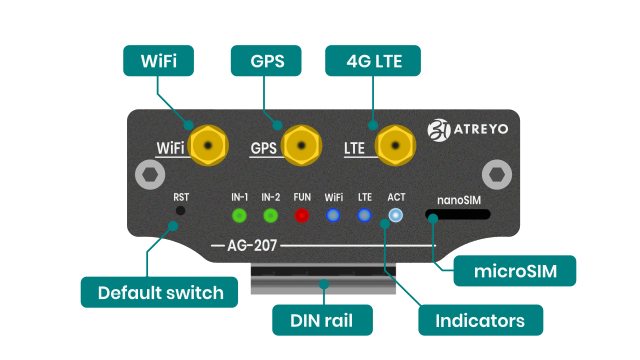

Antenna Connectors	1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi
Ethernet	1 x 10/100 Ethernet with passive PoE
GNSS	GPS, BDS, Galileo, GLONASS, QZSS
WiFi	IEEE 802.11b/g/n
Serial	1 x RS485
Input/output	2 x opto-isolated digital input
Other	1 x USB with USB storage support
Status Indicators	1 x serial (or custom use), 1 x activity, 1x Cellular, 1 x WiFi, 2 x input
Power	8-36V DC with reverse polarity protection, PoE (spare pair)
Operating temperature	-20 °C to 65 °C
Housing	Aluminium housing with DIN rail mounting option
Dimensions	88mm x 65mm x 35mm
Weight	220g

Operating system	OpenWRT 23.05, Kernel 5.15.71, Atreyo Environment V1.01.02
Programming language	Lazarus, C, C++, java, php, html, python, sql etc.
Network protocol suppport	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
VPN and tunneling	OpenVPN, OpenConnect, IPsec, PPTP, SoftEther VPN, WireGuard
Configuration and management	WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT(S), MODBUS, RMS
Cloud solutions	All supported by Linux for MIPS architecture
Modbus	TCP slave, TCP master, RTU master, RTU gateway
Serial	Console, Over IP, Modem, NTRIP

Attachment	Size
Technical Specification	458.02 KB

You can order our products online or send an individual inquiry. Please specify a specific model in your inquiry. Some models/products are only available on special order.
