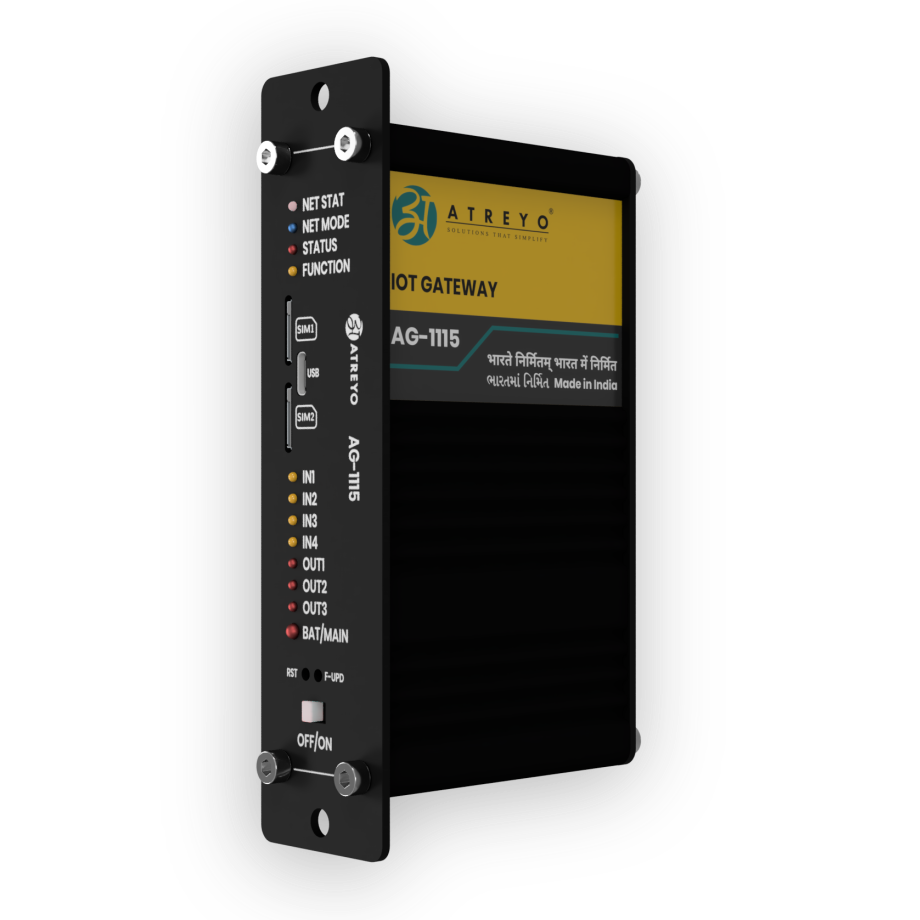

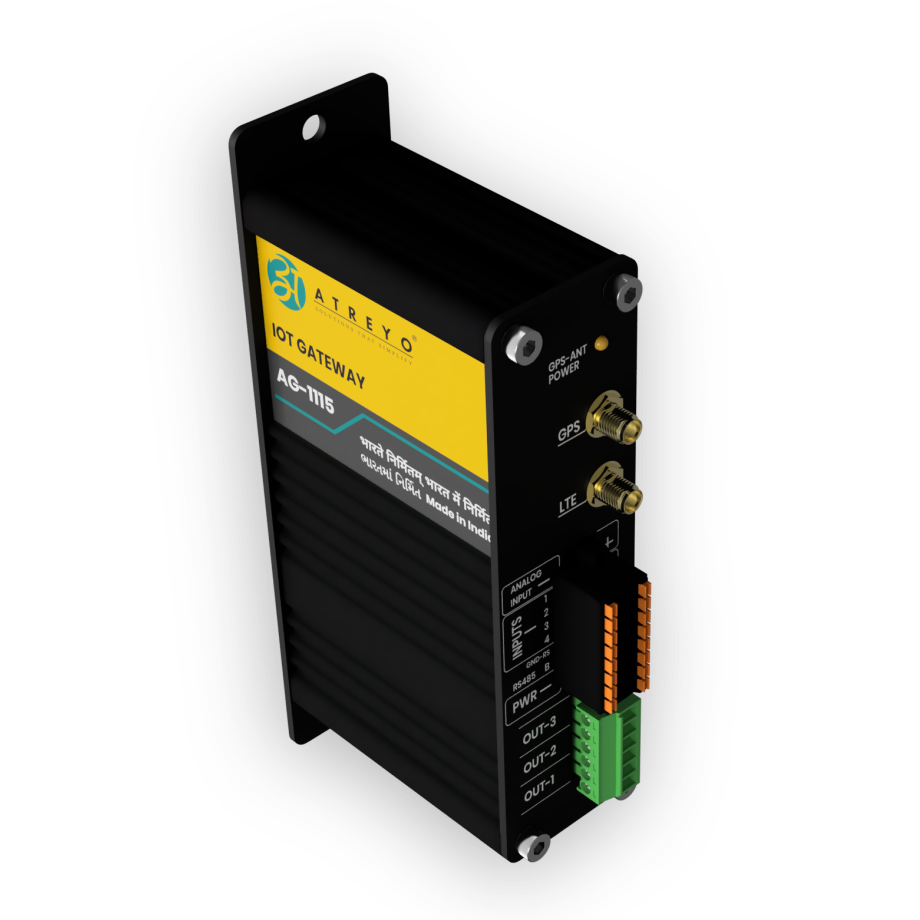

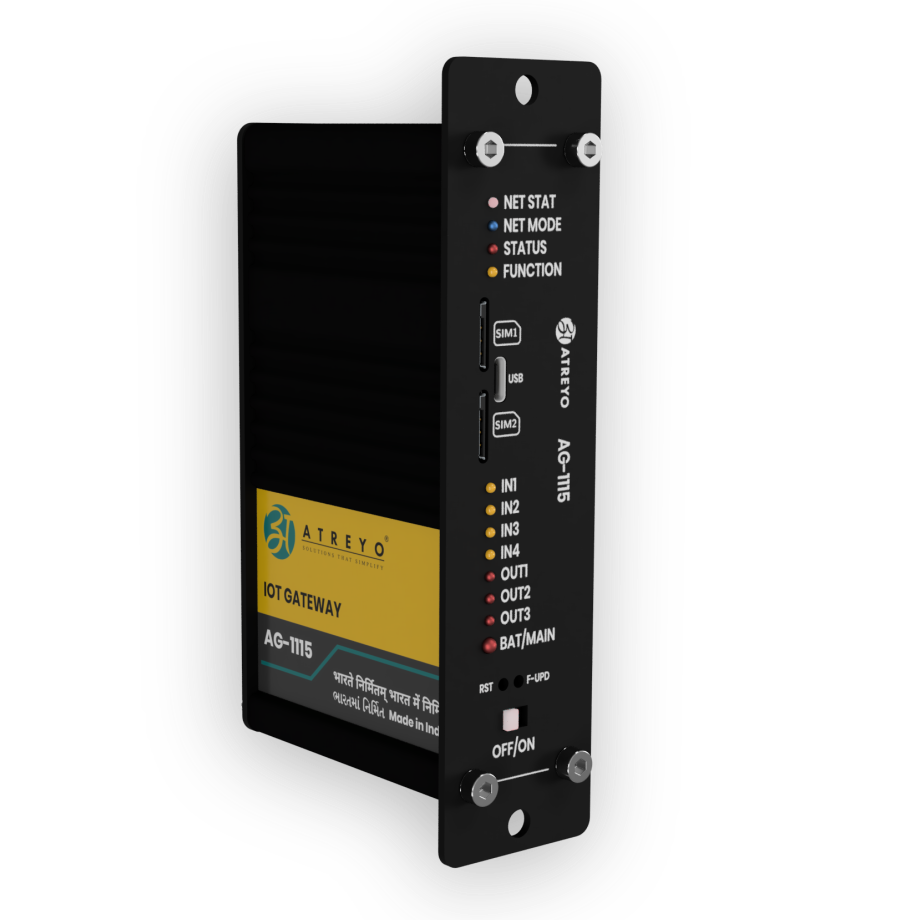

AG-1115
CCMS customised gateway with
4G LTE and dual SIM
- 2 independent relay outputs
- Isolated RS485, and 5 digital inputs and analog input
- Dual SIM, 230V AC detection input
AG-1115 is a cost effective gateway for users who requires LTE gateway for their custom application. The gateway has opto-isolated RS485, digital inputs and outputs, one analog input and LTE/GPRS communication. Also has built-in GNSS with active antenna capability. Gateway software is created according to specific customer requirements. Contact Atreyo for development.
| CPU | ARM processor 500Mhz |
| Storage | 64 MB and optional microSD card |
| Memory | 16MB RAM |
| Cellular | 4G LTE, GPRS |
| SIM | 2 x microSIM |

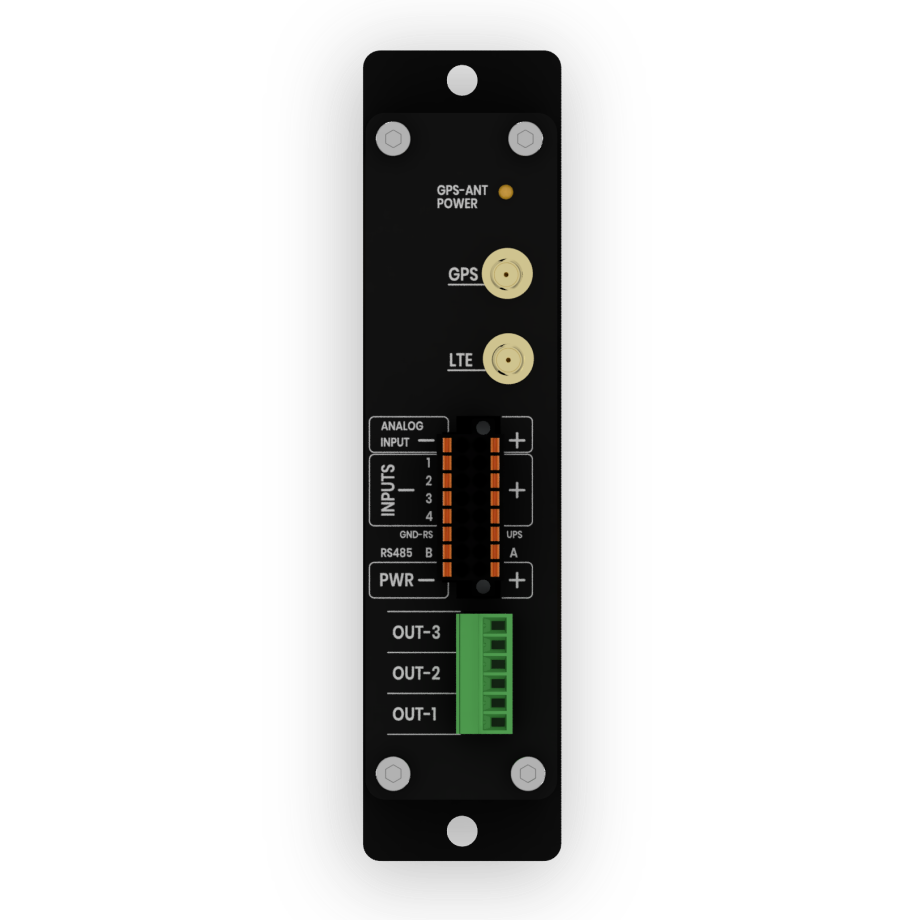

| Antenna connectors | 1 x SMA for cellular, 1 x SMA for GNSS |
| GNSS | GPS, BDS, Galileo, GLONASS, QZSS |
| Serial | 1 x opto-isolated RS485 |

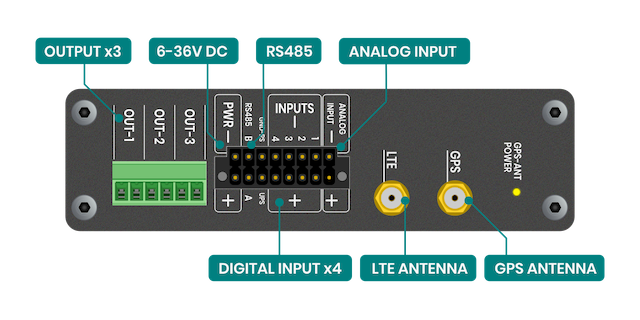

| Input/output | 4 x isolated digital Inputs, 1 x 230V sensing digital input, 1 x analog input, 2 x relay digital output |

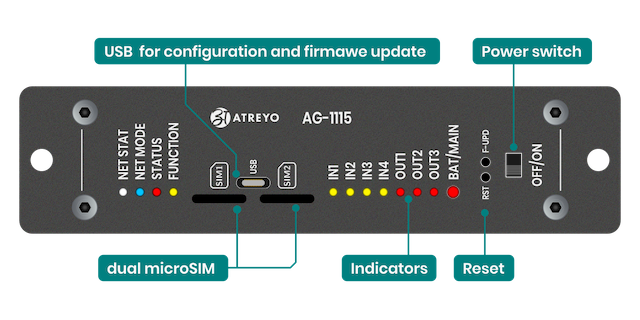

| Other | USB for configuration and system update |

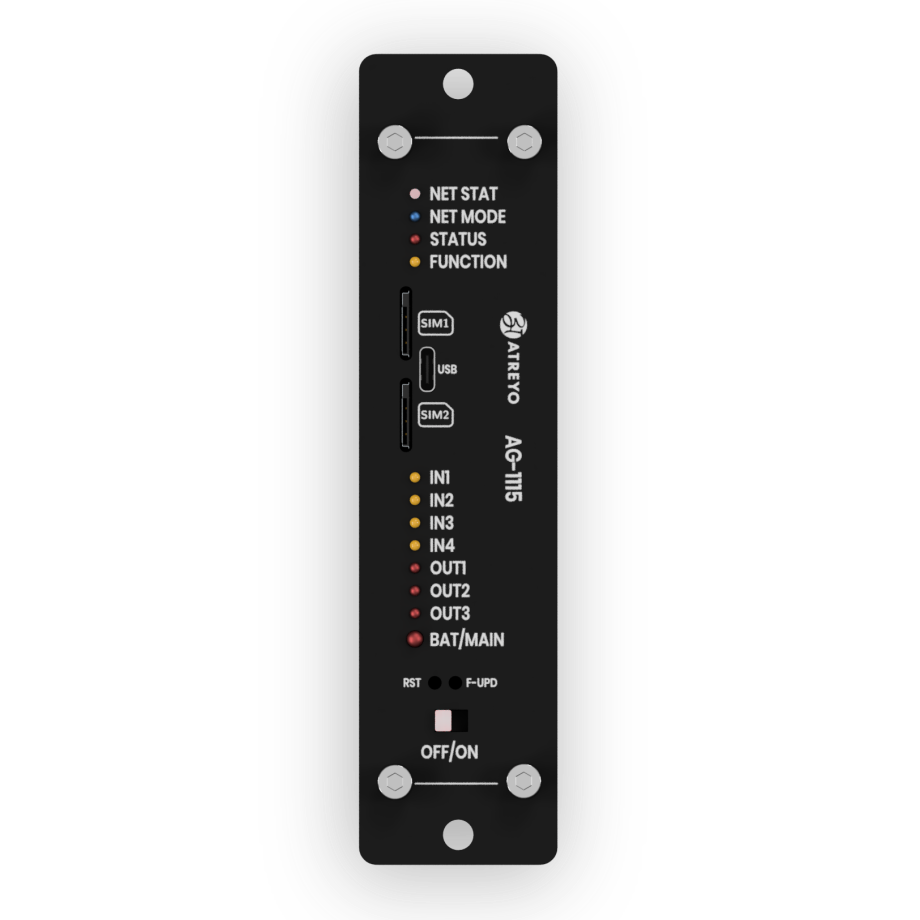

| Status indicators | 5 x digital input, 1 x activity, 1 x power, 2 x output, 1 x LTE, 1 x antive antenna enable |
| Power supply | 8-36V DC with reverse polarity protection |
| Power backup | SuperCAP backup for last message or long time battery backup (depend on customer requirement) |
| Operating temperature | -20 °C to 75 °C |
| Housing | Aluminium housing with DIN rail or panel mounting option |
| Dimensions | 135mm x 75mm x 38mm |
| Weight | 360g (models without backup option) |
| Operating system | Embedded system |
| Network protocols | All functions are designed according to customer needs |
| SMS Functions | According to customer requirement |
| System update | USB, over the air (OTA) |
You can order our products online or send an individual inquiry. Please specify a specific model in your inquiry. Some models/products are only available on special order.
| Model Selection | Cellular Network | Super cap backup | battery backup | |||
|---|---|---|---|---|---|---|
| GPRS | LTE | |||||
| AG-1115 | √ | √ | Enquiry | |||
| AG-1115-BAT | √ | √ | √ | Enquiry | ||
| AG-1115-SC | √ | √ | √ | Enquiry | ||
