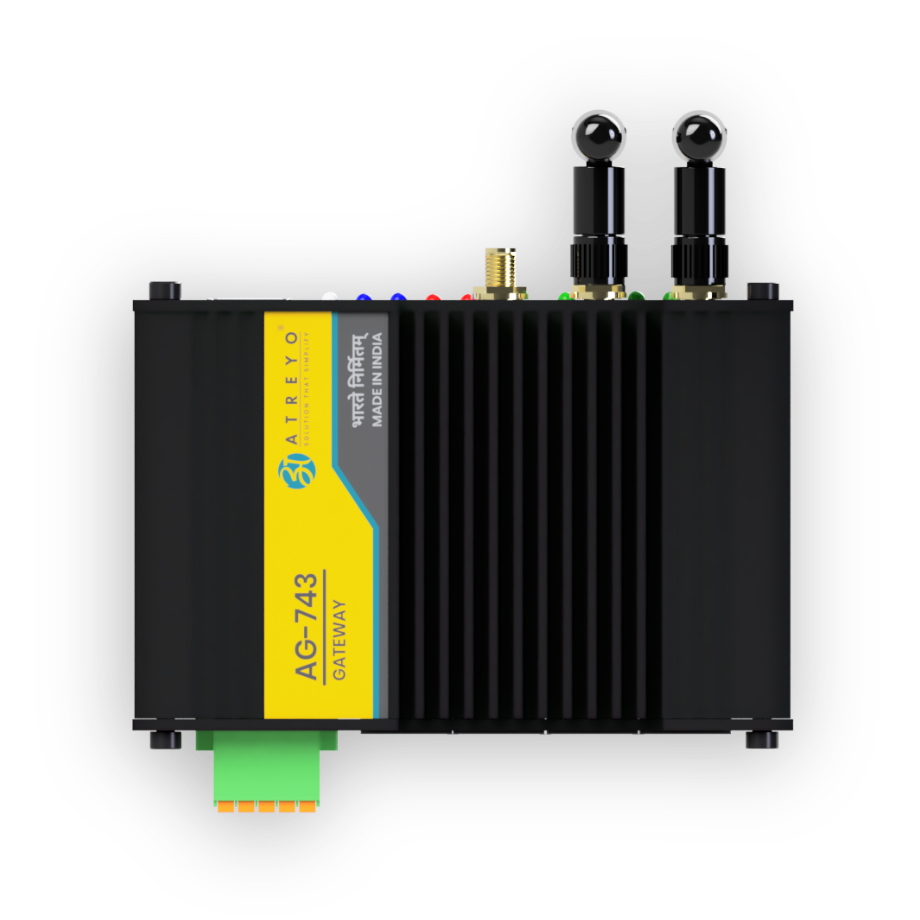

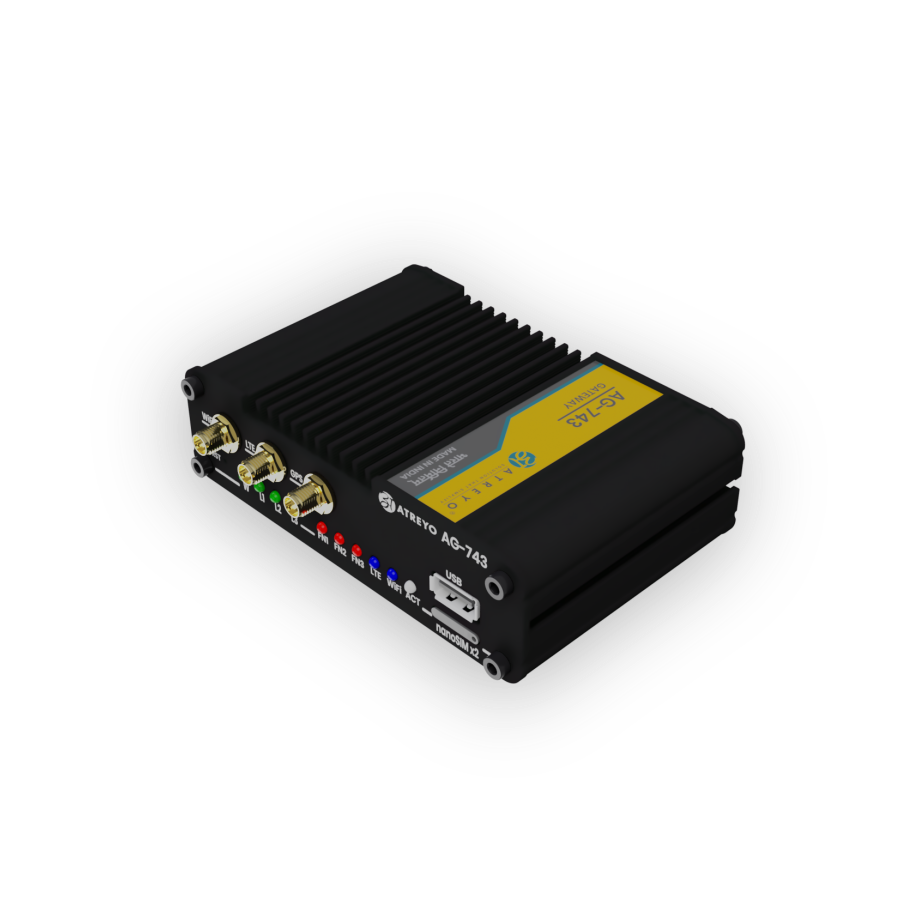

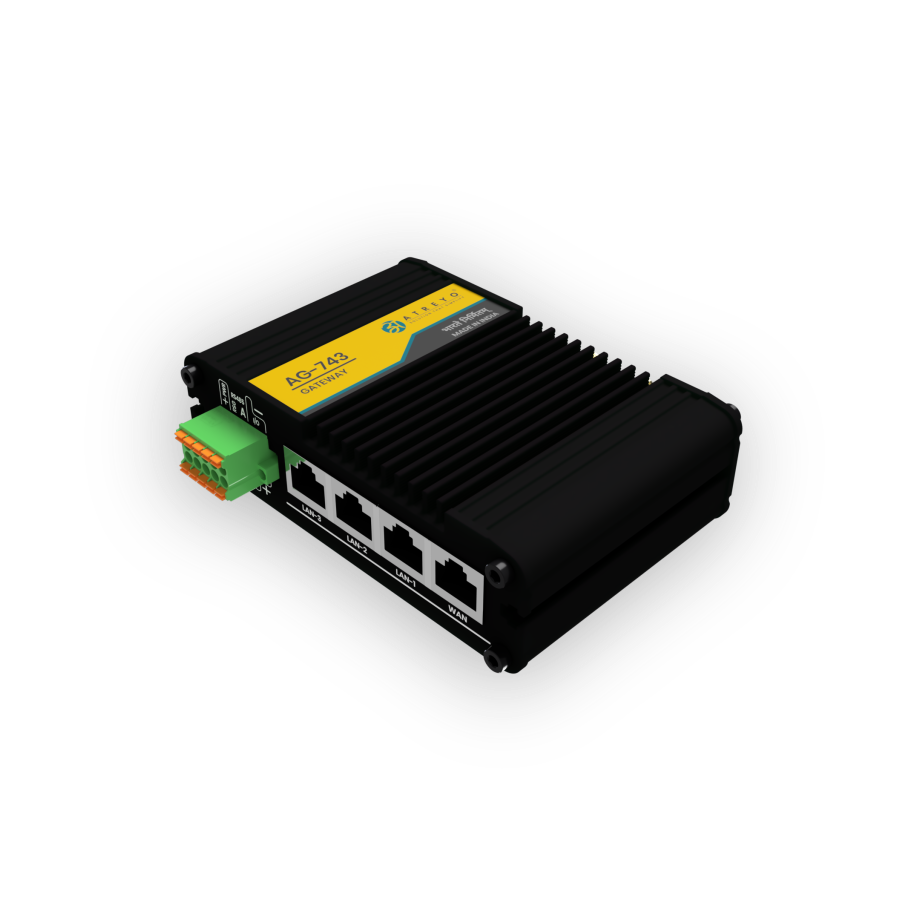

AG-743
4G LTE 4 Ethernet industrial
router with RS485 and I/O
Coming Soon!
- OpenWRT system with custom script support
- 1x WAN 3x LAN, WiFi, 4G LTE, GPS and isolated RS485
- Additional 512MB memory as overlay
- More than 6500 ready applications
AG-743 is a 4G LTE cellular gateway with 4 ethernet ports, WiFi, RS485 and digital inputs working on OpenWRT system. It can connect in multiple ways to the internet with dual SIM capability and a range of advanced functions for mission critical IoT or M2M applications. AG-743 also support MQTT protocol for cloud application and Modbus TCP/IP or RTU for industrial applications.
| CPU | 580MHz MIPS 24KEc processor |
| Storage | 64MB+512MB ExtRoot support (overlay) |
| Memory | 256MB RAM |
| Cellular | 4G LTE, GPRS |
| SIM | 2 x nanoSIM, tray to prevent cards falling out |

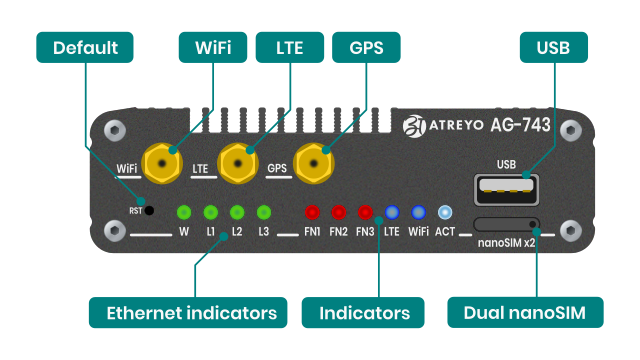

| Antenna Connectors | 1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi |

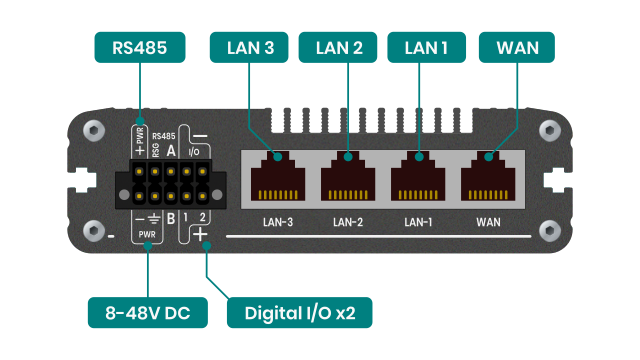

| Ethernet | 4 x 10/100 Ethernet - 1 x WAN 3 x LAN |
| GNSS | GPS, BDS, Galileo, GLONASS, QZSS |
| WiFi | IEEE 802.11b/g/n with hotspot function |
| Serial | 1 x opto-isolated RS485 |
| Input/output | 2 x opto-isolated digital Input |
| Other | 1 x USB with USB storage support |
| Status Indicators | 1 x custom use, 1 x connectivity, 1 x activity, 1 x WiFi, 2 x input |
| Power supply | 8-48V DC with reverse polarity protection, PoE (spare pair) |
| Operating temperature | -20 °C to 65 °C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions | 114mm x 84mm x 32mm |
| Weight | TBD |
| Operating system | OpenWRT 23.05, Kernel 5.15.71, Atreyo Environment V1.01.02 |
| Programming language | Lazarus, C, C++, java, php, html, python, sql etc. |
| Network protocol suppport | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN and tunneling | OpenVPN, OpenConnect, IPsec, PPTP, SoftEther VPN, WireGuard |
| Configuration and management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT(S), MODBUS, RMS |
| Cloud solutions | All supported by Linux for MIPS architecture |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway |
| Serial | Console, Over IP, Modem, NTRIP |
This is a new product. It will soon be available for sale. Please contact us for details.
