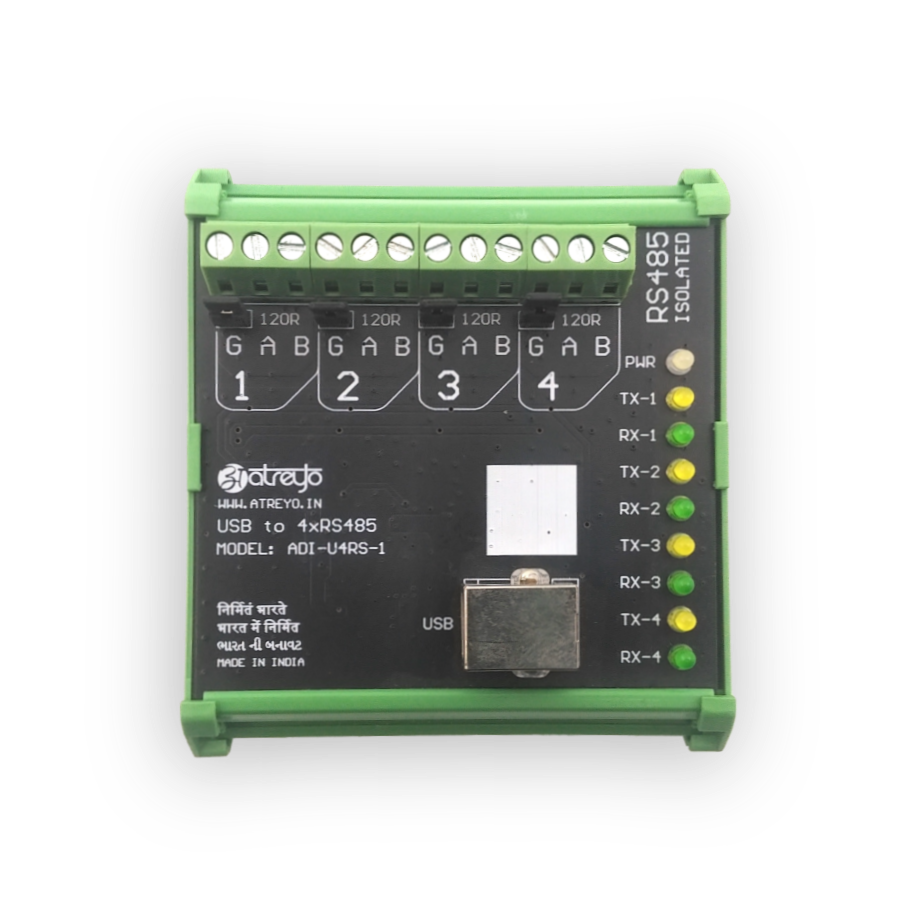

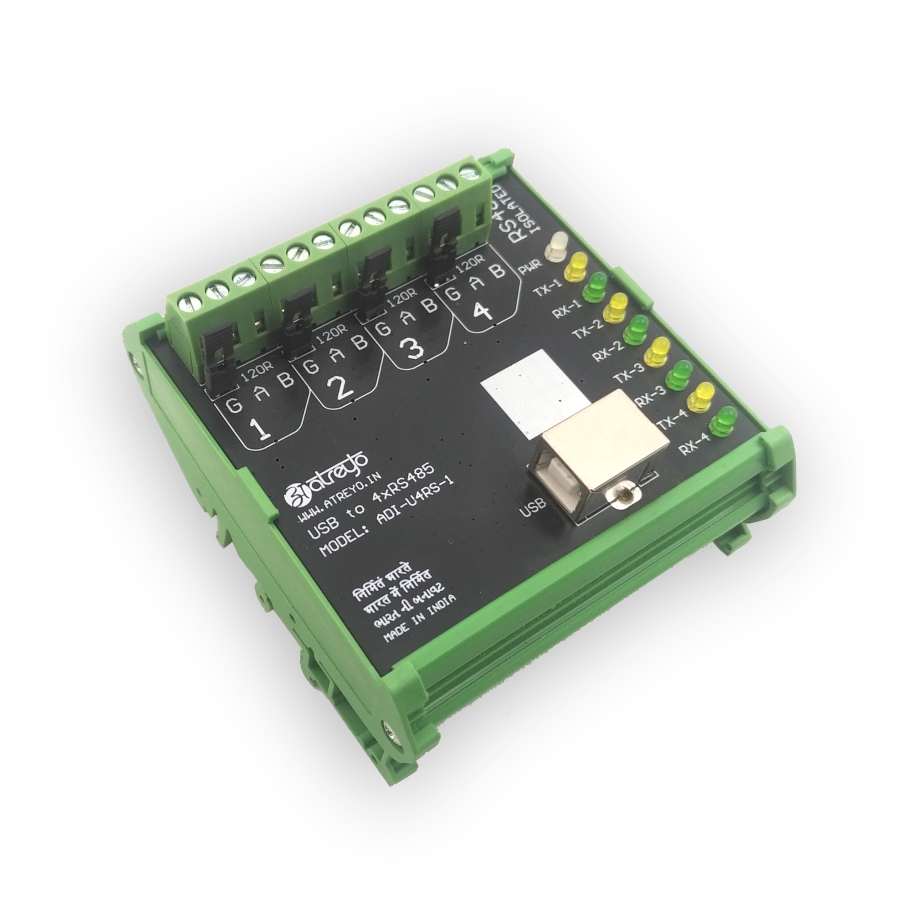

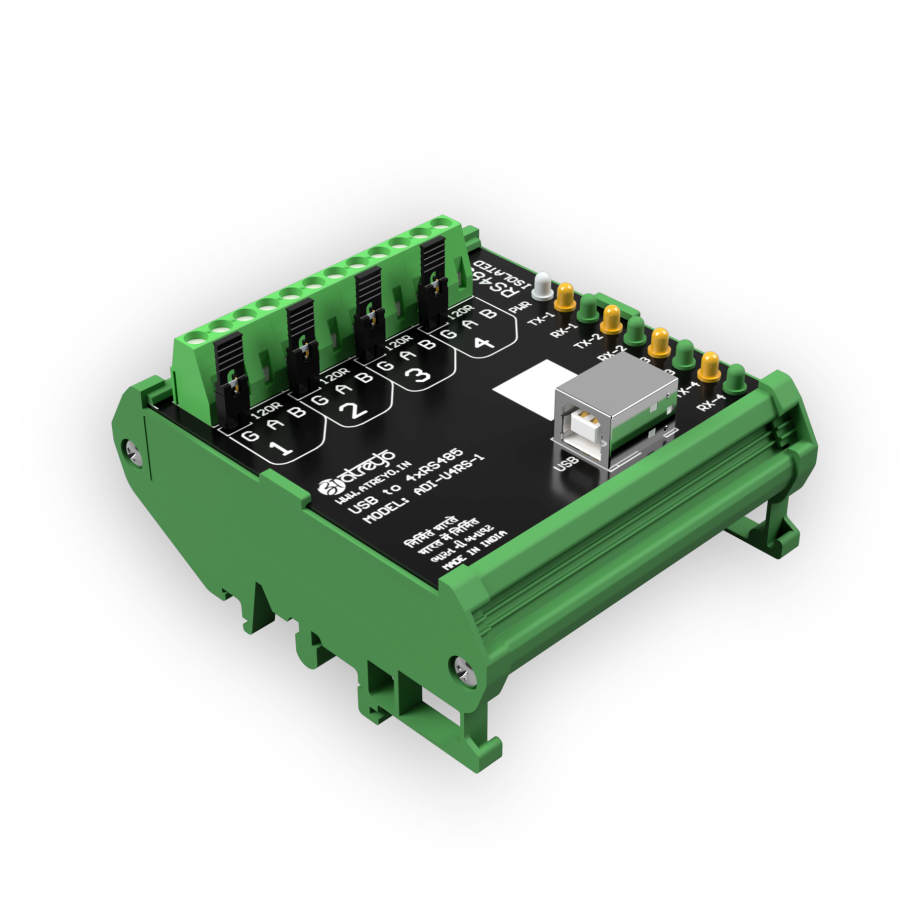

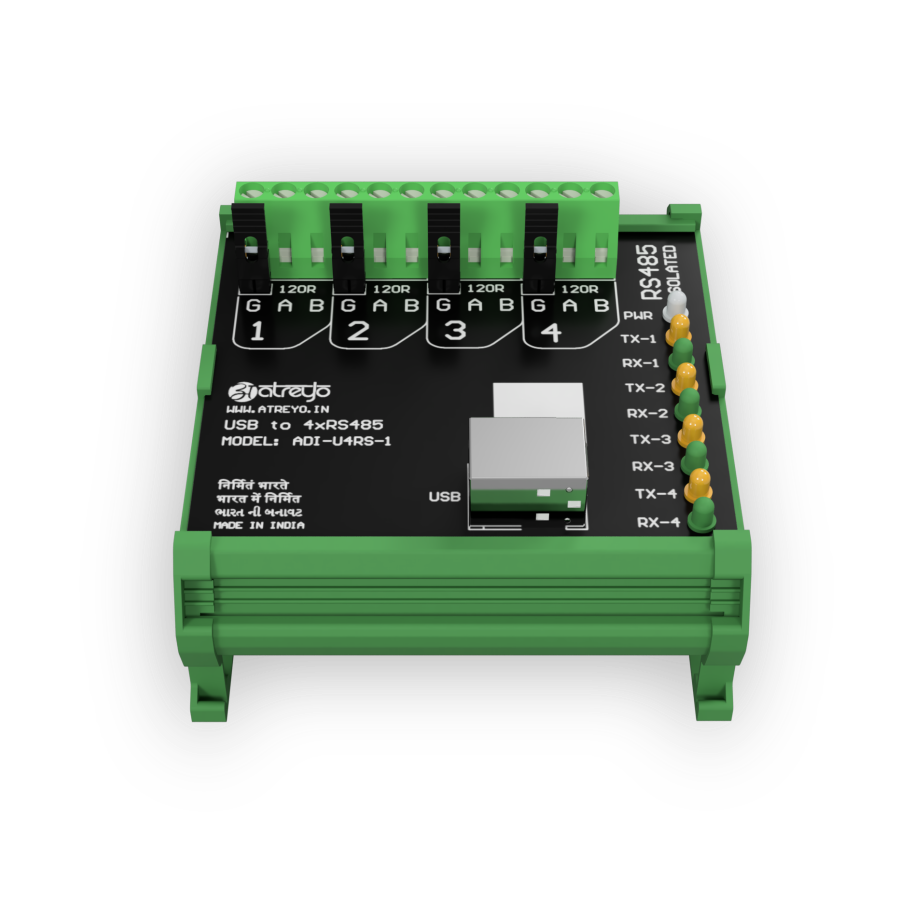

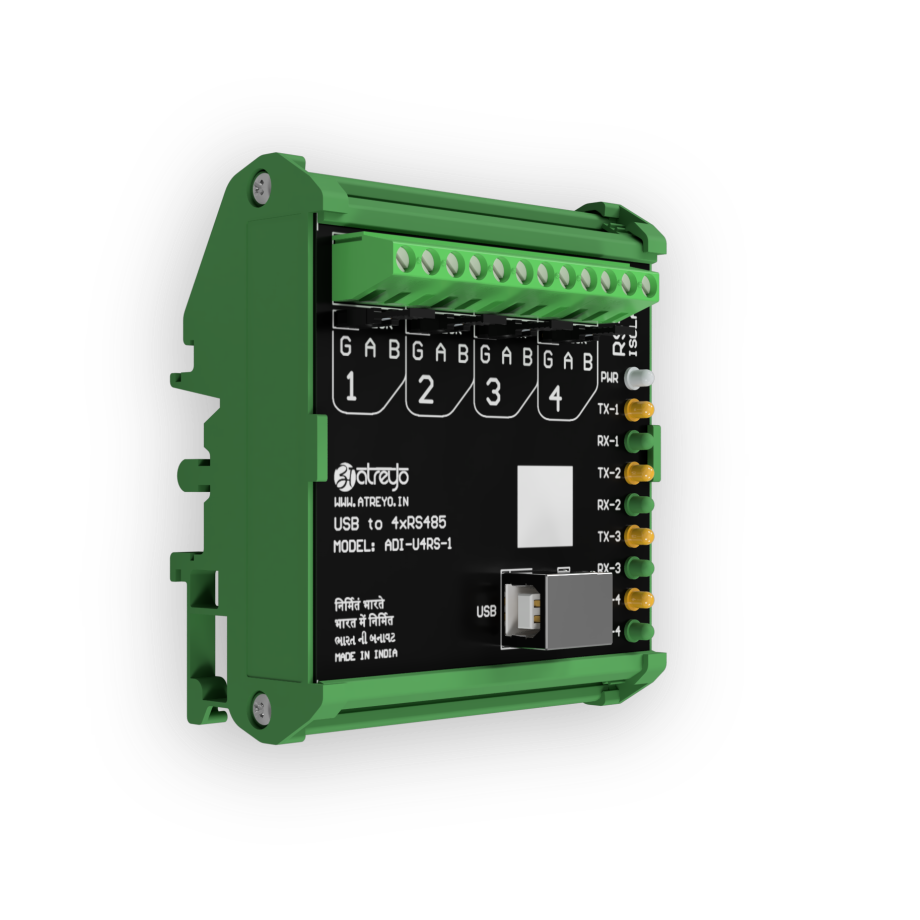

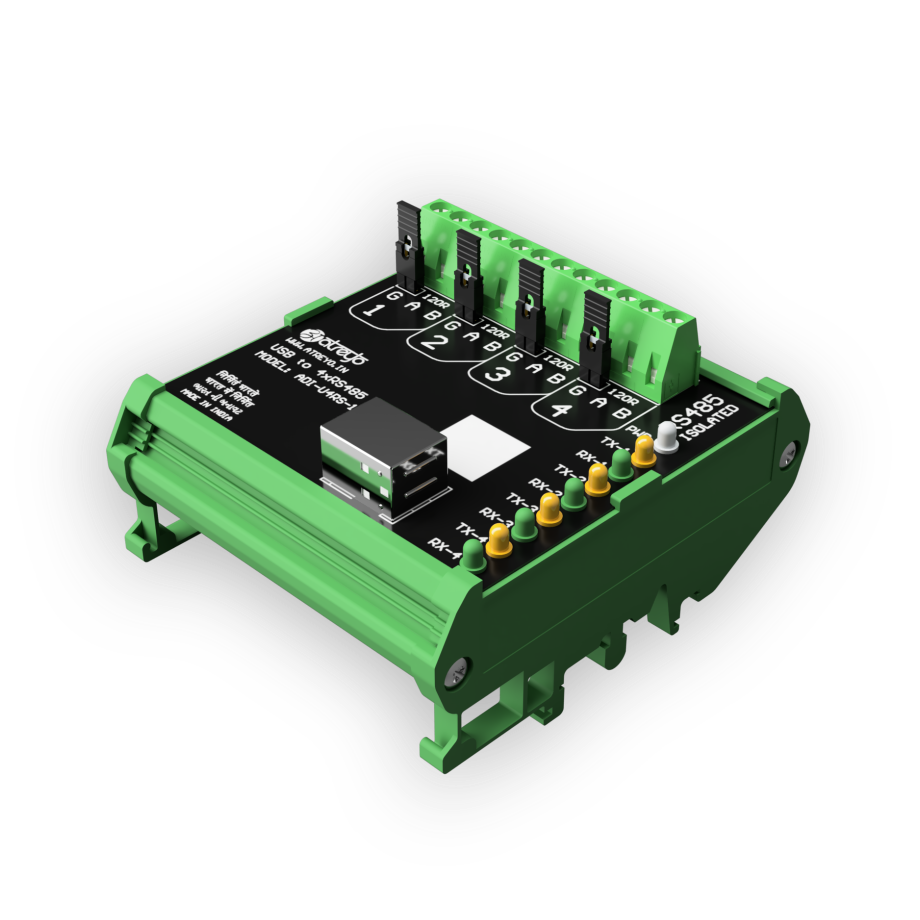

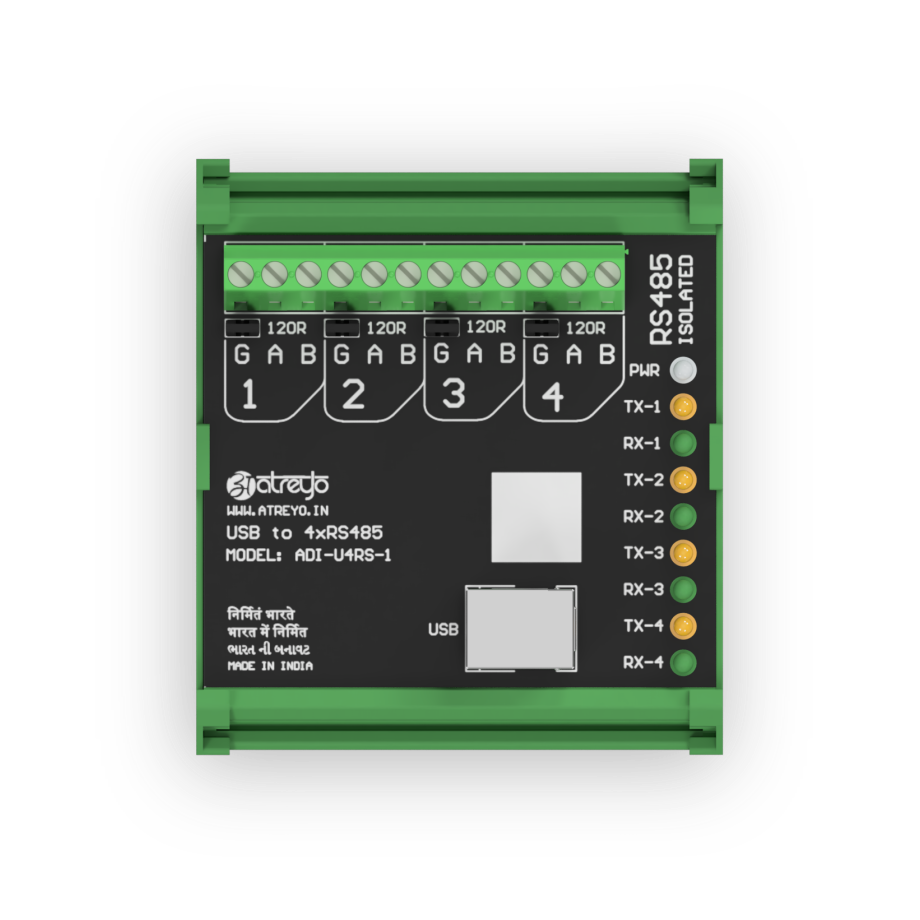

ADI-U4RS-1
USB to 4 x RS485 isolated interface
New product
- 4 x RS485 ports independently isolatee
- Baudrate 600 to 921600 and custom baudrate support
- RX and TX indicators for each serial port
The interface ADI-U4RS-1 is a USB to four independent RS485 serial ports. Each port is separately optically isolated and protected against electrostatic discharge by TVS, GDT and PTC fuses. The interface can run on Linux, MAC OS and Windows. Highest quality FDI chips used.
| USB type | USB 2.0 |
| Connector | USB type B |
| Serial interface | 4 x RS485 opto-isolated |
| Protection | Opto-isolated 2.5 kV RMS per UL 1577 |
| Baudrate | Baudrate 600 to 921600, custom baudrate support |
| USB to serial chip | FT4232 |
| Protection | IEC 61000-4-2 level 4, GDT protection |
| Status indicators | ON – power, RX for 4 channel, TX for 4 channel |
| Power | Direct from USB |
| Operating temperature | -10°C to 75°C |
| Housing | PVC DIN rail mount |
| Dimensions | 80mm × 90mm × 50mm (L×W×H) |
| Weight | 80g |
Contact for a quote and to place an order - Contact us
